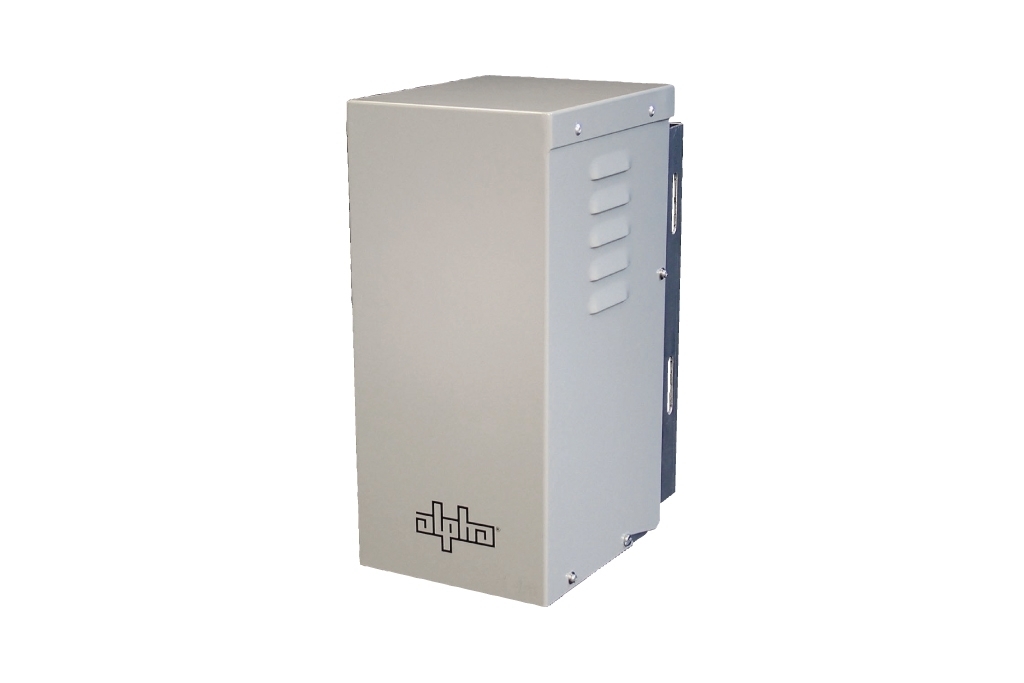

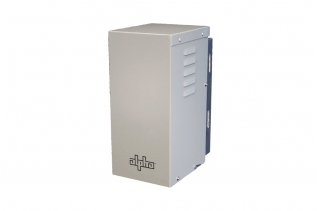

APX2 615 G
Non Standby Power Supply
Price: HK$0
download-icon Download Specification
Features
  • Indoor and outdoor applications
  • Complete line conditioning provides regulated, clean, reliable power
  • Current limited output and short circuit protection
  • Universal bracket (pole or wall mount)
  • Output current test points
  • Input line fuse
  • Input line switch
  • Visual output “ON” indicator
  • Output coaxial terminal
  • Ground connection
  • Cable gland (Input wiring)
  • Other Alpha product are also available
Specification

General

Input Voltage (VAC)   220
Input Frequency (Hz)   50
Output Voltage (VAC)   63/48
Output Current (A)   15
Max. Output Power (VA)   900
Input Fuse Protection (breaker)   8A
Weight (kg/lbs)   15.88 / 35
Input Power factor > 0.90 at full load
  Voltage: 50Hz 220VA -20% ~ 25%
  Voltage: 60Hz 110 / 220VAC -20% ~ 25%
  Frequency ± 3%
Output Waveform Quasi-square wave
  Voltage regulation  ± 5%
  Eciency 90% or better
Dimensions (WxHxD)   171.5 x 381 x 241.5 mm
Finish   Durable powder coat
Material   Aluminum
Operating Temperature   -40°C ~ 55°C
Safety   CCC, CB, SARFT
