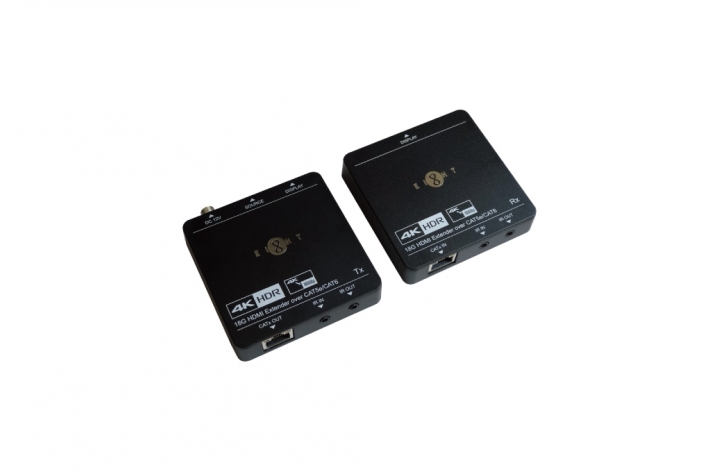

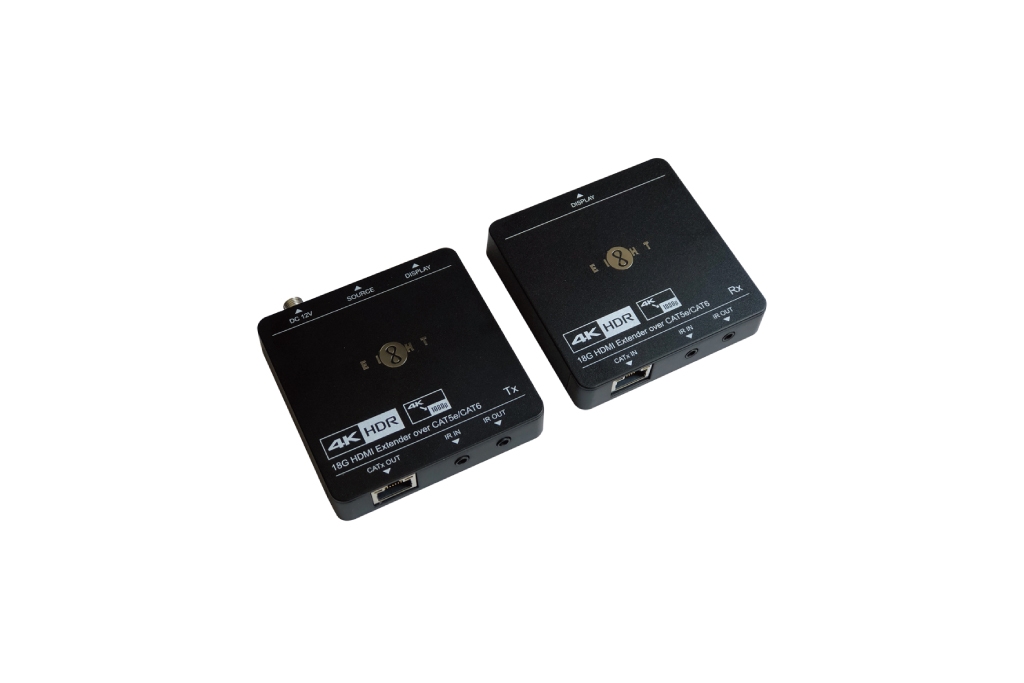

H4KLAN60
HDMI 2.0 Extender (60m)
Price: HK$0
download-icon Download Specification
Features
  • HDMI2.0, HDCP2.2 compliant
  • Built-in EDID to ensure HDMI signal transmission from source to display
  • Extends 4K @60Hz, 1080P @60Hz signal up to 60m
Specification


General

Input  TX: HDMI x1, RX: RJ45 x1
Output TX: HDMI x 1 , RJ45 x 1,  RX: HDMI x 1
Control TX: 3.5mm mini jacks x 2
  RX:  3.5mm mini jacks x 2
Receiver Up to 4K@60Hz 4:4:4, HDR
Transmission Distance 4K/1080p ≦70 meters (230ft)
HDMI Version Up to HDMI 2.0
HDCP Version Up to HDCP 2.2. (output follows the HDCP version of display device)
EDID Pass through Supported
Power Supply Input  100VAC~240VAC, 50/60Hz
Power Supply Output  DC 12V 1A
Power Consumption 4W (Max)
Operation Temperature -5 to +55°C
Storage Temperature -25°C~70°C
Relative Humility 10%  to 90%
Dimension (LxWxH) 80 x 80 x 16.8mm
